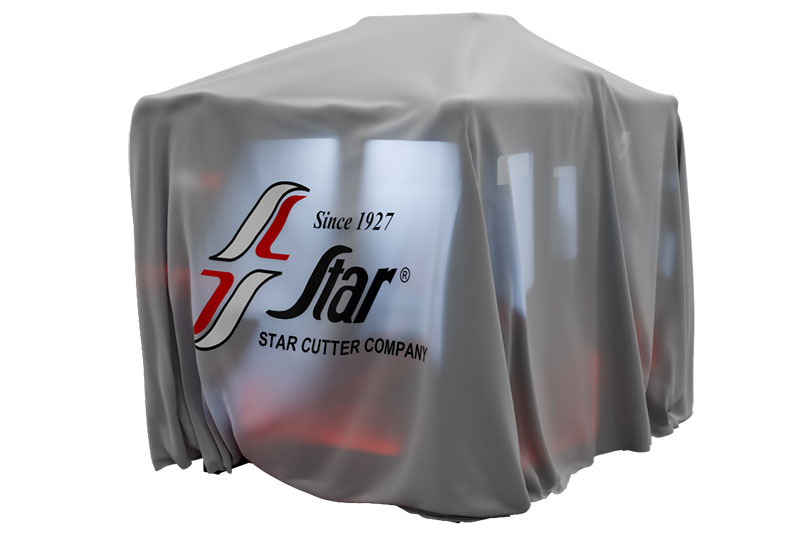

In booth #237013 at IMTS 2024, Star Cutter Company will unveil its newest generation tool grinder – the FLX. This 5-axis grinder offers high-efficiency carbide tool manufacturing within a compact footprint. It has been designed with a focus on flexibility, enabling users to modify features to exactly match their grinding needs. For unattended machining, FLX features a broad range of automation capability, producing large numbers of parts continuously.

The machine flexibility includes an ergonomic design with adjustable features that allow personalized setup to ensure operator comfort. With a grind zone of up to 228mm in length and 20mm in diameter, the FLX accommodates a wide variety of tool sizes. This breadth of processing is supported by up to 15 wheel changing stations with wheels of up to 6” in diameter, as well by intuitive Flexium Pro CNC, the newest control platform from NUM, helping to streamline operations.

Additionally, the machine can be equipped with truly modular automation that makes field implementation easy, while providing for optimal part quantity and wheel changing. Using waterfall programming, FLX can produce up to 1105 tools (3-7mm diameters) before unloading.

FLX is designed to be precise and accurate in both controlled and uncontrolled climate conditions, giving it broad application across industry, even in harsh environments. It features reduced warmup time, elimination of redundant chiller systems, and 35mm linear carriages for durable machine movement and longevity.

The FLX has a footprint of 72” W x 55” D (94.5” D with the automation model), and a height of 73.3”. Machines weigh 7,000 lbs. (9,000 lbs. with automation). Other options include a bolt-on tooling rail with T-slot construction, runout minimizer, and a two-wheel changer (for non-automated machines).

In addition to the new FLX grinder, other Star Cutter products to be featured include:

• TRU TECH T93X Centerless Grinder
• Louis Belet Swiss Cutting Tools
• Round Tools: solid carbide drills and reamers, deep hole drilling solutions, PCD and 3D printed tooling
• Gear Cutting Tools: hobs, shapers, Scudding® and skiving cutters, and more
• Carbide blanks and preforms

IMTS 2024 will be the first opportunity for users to see the FLX grinder. To set up an appointment in advance, email [email protected]
