Precision Cutting Tools from One Source
Our comprehensive cutting tool line contains almost everything for your cutting tool needs, including patented solutions you will find only at Star SU. Explore the Cutting Tool categories below to learn more about our offerings. Or, you can browse by cutting tool brand.
Master Gears and Plug Gauges
We offer wide range of precision tools for measurement, setting, calibration and correction. All checking and setting masters are fully tested on CNC inspection equipment and are delivered with a certificate of conformity.
Gear Shaving Cutters
From design to delivery, we carry a wide range of Samputensili shaving cutters including transverse, diagonal, underpass, plunge, internal/external shaving. All tools are supplied with inspection and lead test charts.
Solid Carbide Twist Drills
Solid Carbide Twist Drills are available in lengths up to 30x diameter and to custom lengths, and are reversed engineered for your specific application.
Double Crimp Gundrills
The term double crimp is derived from the process of crimping the same tube used for the single flute gundrill, only crimping it twice, 180 degrees apart. Therefore, with the ﬂute channels on this type of tool being somewhat shallower then the single flute, they limit the type of materials to be drilled by the chip size generated.
Double Jet Gundrills
Star SU, with its years of experience in gundrilling developed a Star original patented Double Jet Gundrill. The most critical interface, in which the carbide is subjected to the most traumas, is during entry/exit of the part and during interruptions of the boring cycle.
Two-Flute Two-Hole Gundrills
Often referred to as the “milled style,” the two-ﬂute two-hole gundrill differs from the double crimp by the rigidity of its body. This rigid body allows for higher feed rates than traditional crimp body style drills.

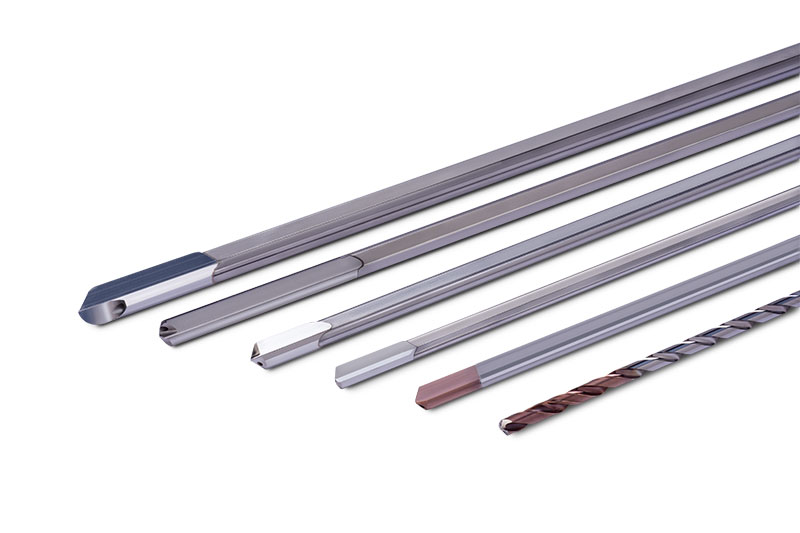

Single Flute Gundrills
The single ﬂute gundrill, with its ability to machine very straight deep holes and hold excellent ﬁnishes, was originally developed for gun barrel manufacturing. Today, this drill is designed for deep hole drilling in virtually any material.
Solid Carbide Single Flute Gundrills
Solid carbide gundrills have a two-piece construction design. The tip and body are a single piece of carbide brazed into the driver/shank and the ﬂute is ground down the length of the head and body. This rigid design has made its way into CNC machining centers and lathes, equipped with high pressure coolant delivery systems.
Multi Diameter Cavity Machining Tools
Star SU has perfected a line of cavity/porting tools that will allow cuts from either a solid or cast core casting condition. In many cases, these multi-step tools will allow cavity machining in one pass or shot.

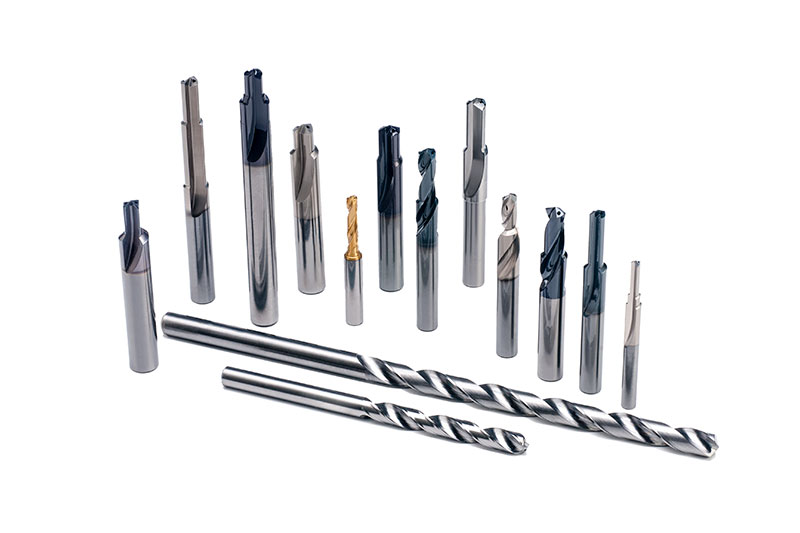

Solid Carbide Drills
Star SU’s specially designed, solid carbide drills are available as straight or helical drills, single or multiple diameters drills, single or multiple-flute design, diameter range starting from 0.1875″ (4.76 mm).
Star SU reamers are made in both multiple flute and multi-diameter types. Based on the overall length of the tool required to machine your feature, we can manufacture a solid carbide reamer or braze a solid carbide reamer head to a tubular steel body.
Super Round Tool (SRT)
Super Round Tool (SRT) Lead InThe SRT is an original Star Cutter Company design and build product that offers a unique, patented design that combines two tools into one — multiple straight flutes for consistent location and multiple helical flutes to ensure roundness and finish.
Valve Guide Reamers
Star SU valve guide reamers utilize pressurized coolant to force chips ahead of the tool to produce ultra-smooth, ultraprecise holes. They produce holes to tolerance of 0.0005″ (0.013 mm) and less in steel, cast iron, compacted graphite iron, nodular iron, aluminum, bronze and exotic materials.

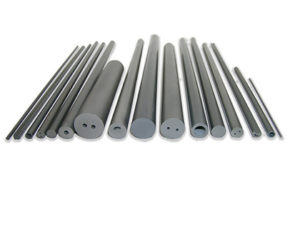

H.B. Carbide manufactures several types of round rod in numerous sizes and multiple grades including round rods, single hole rods, two-hole rods, ground round rods, and helical hole rods.
Standard gundrill extrusions up to 12.2” long are available in diameters ranging from 0.098” to 0.770” OD and are available with three different coolant hole geometries.
H.B.Carbide offers threaded preform with eliminated steel plugs. These preforms are threaded to a usable size, coating friendly and can be offered without additional lead times.

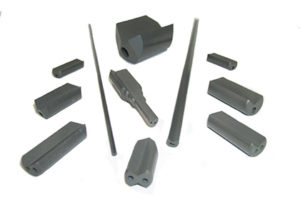

Blanks can be manufactured for your specific requirements using any of the grades we offer. Our experienced operators, using CNC and manual equipment, can manufacture nearly any blank you require.

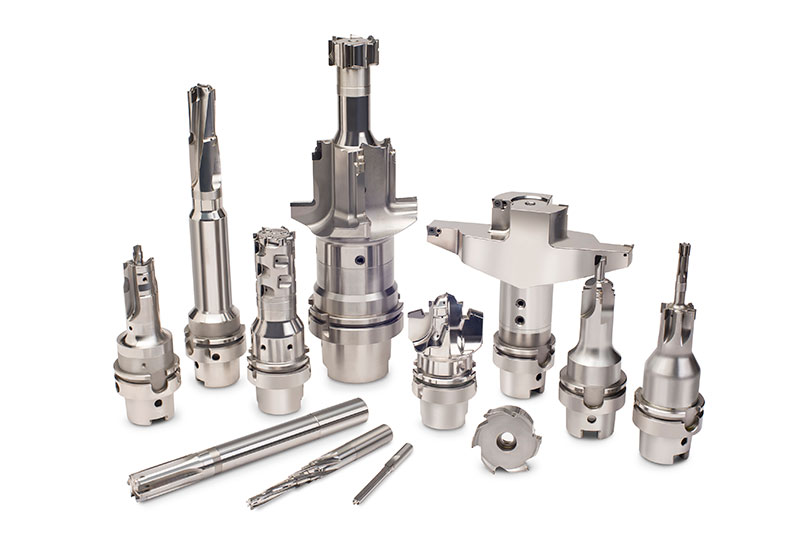

PCD Precision Reamers
Star SU/Neher designs and builds precision helical and straight flute PCD reamers, available in carbide and steel body monoblock styles. All tools are manufactured specifically to meet custom design requirements.

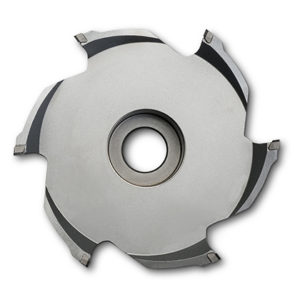

PCD Milling Cutters
Fixed Pocket Milling Cutters are engineered to machine both high and low silicon aluminum. Our standard and special design cutters allow for the maximum number of cutting teeth compared to indexable cutters allowing for reduced cycle times and overall part consistency.
PCD Interpolation Tools
PCD Interpolation Tools combine operations into one tool that is capable of milling multiple diameters, spot-facing and machining internal forms that results in cycle times and cost per hole reductions.
Custom Cutting Tool Orders
Star SU can source a huge selection of precision cutting tools through our network of technology partners. Browse our cutting tools above and request a quote for your cutting tool specifications today. An experienced representative will recommend the right tool or tool services for the job. You can also browse our online catalog of machine tools and tool grinding machines, or learn about our tool services.
